TLV9062IDSGT
Manufacturer:
Texas Instruments
Mfr.Part #:
TLV9062IDSGT
Datasheet:
Description:

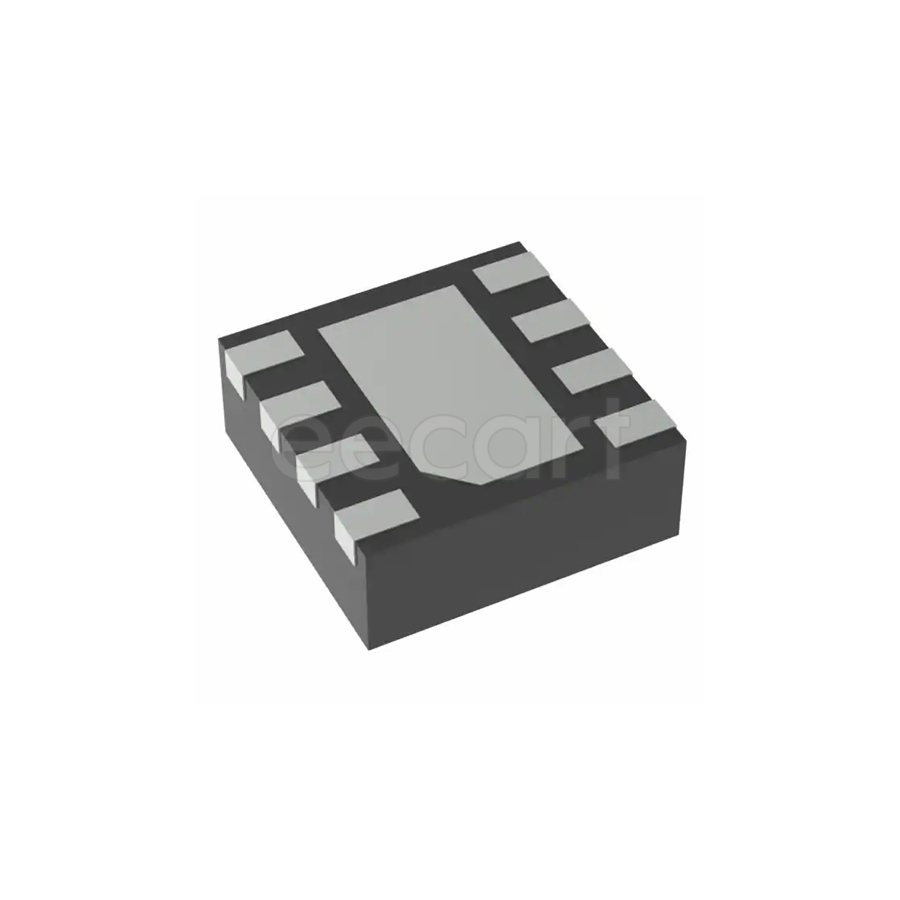

Amplifiers - Op Amps, Buffer, Instrumentation WSON-8 SMD/SMT CMOS Operational Amplifier Number of Circuits:2
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 2 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 800 µm |
| Packaging | Reel |
| Thickness | 0.75 mm |
| RoHS | Non-Compliant |
| Number of Circuits | 2 |
| Bandwidth | 10 MHz |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.8 V |
| Number of Channels | 2 |
| Slew Rate | 6.5 V/µs |
| Common Mode Rejection Ratio (CMRR) | 103 dB |
| Operating Supply Current | 538 µA |
| Input Bias Current | 500 fA |
| Gain Bandwidth Product | 10 MHz |
| Input Offset Voltage (Vos) | 1.6 mV |
| Input Voltage Noise Density | 16 nV/sqrt Hz |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Amplifier Type | CMOS Operational Amplifier |
Stock: 2525
Distributors
pcbx
pcbxUnit Price$0.91392
Ext.Price$0.91392
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.91392 | $0.91392 |
| 10 | $0.66941 | $6.69410 |
| 25 | $0.60529 | $15.13225 |
| 50 | $0.57007 | $28.50350 |
| 100 | $0.53690 | $53.69000 |
| 300 | $0.47666 | $142.99800 |
| 500 | $0.42319 | $211.59500 |
| 1000 | $0.41891 | $418.91000 |
